- Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion.
- 1-inch (25mm) angle-adjustable, metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis.

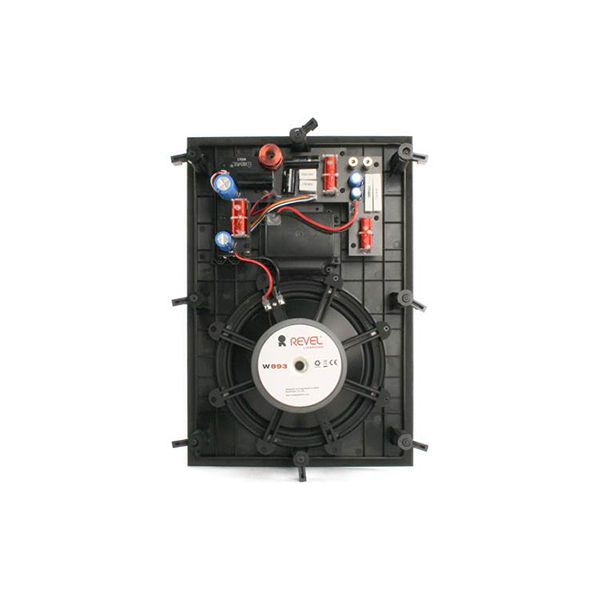

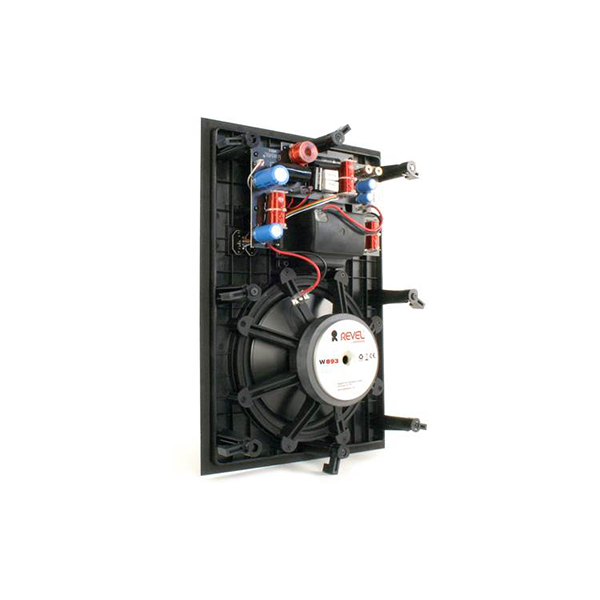

- High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction.
- Boundary compensation switch (W893/W873/W783/W763) lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near an additional wall or the ceiling.
- Three-position tweeter level control (W893/W873/W783/W763/W583/W563/W553L) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles.
Specifications
General
- Brand: Revel
- Model: W-893
- Depth: Mounting depth 3.7″ (9.4 cm)
- Weight: 10.8 lb (4.9 kg) / Shipping weight 12.8 lb (5.8 kg)

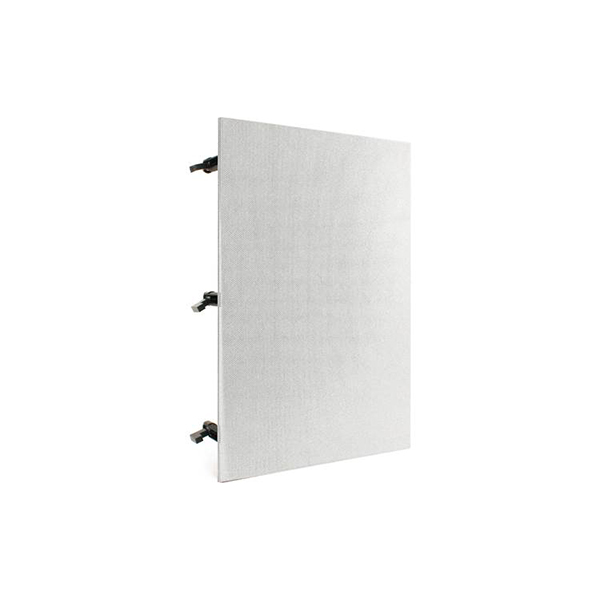

- Features: Cutout dimensions (H x W) 17.4″ x 11.6″ (44.3 cm x 29.5 cm) • Includes zero-bezel magnetic grille • Grille finished dimension (H x W) 18.5″ x 12.7″ (47.0 cm x 32.3 cm)
- High Frequency Driver Components: 1″ aluminum dome swiveling high-output tweeter with waveguide
- Low Frequency Extension: High Frequency Extension (-10dB) 3-position HF level control / Low Frequency Extension LF boundary compensation
- Crossover Frequencies: Advanced high-order crossover network
- Low Frequency Driver Components: 9″ Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame High-Output Woofer
- Mid-Frequency Driver Components: 3.5″ micro-ceramic composite (MCC) cone, cast-aluminum frame high-output midrange
- Mounting: C-2 mounting mechanism • Compatible with wall material thickness range 0.5″ – 1.0″ (1.3 cm – 2.5 cm)
- Recommended Amplifier Power: 10 – 200 Watts RMS
⚡Warranty
- Warranty: 1 Year
