- Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion
- 1-inch (25mm) angle-adjustable, metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis.

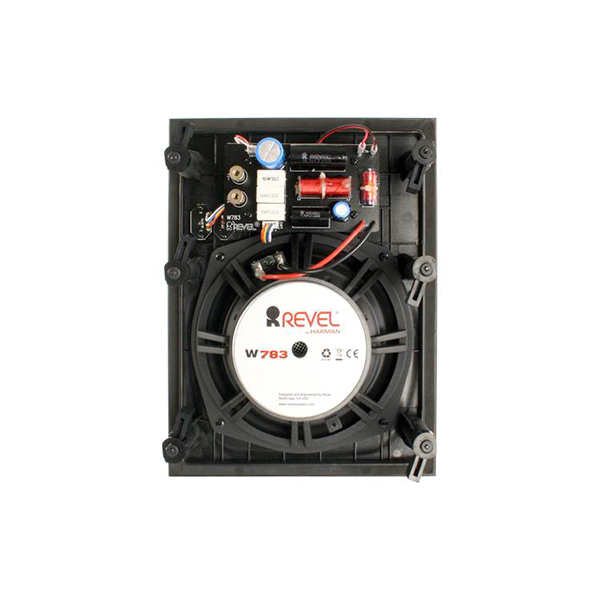

- High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction
- Boundary compensation switch (W893/W873/W783/W763) lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near an additional wall or the ceiling
- Three-position tweeter level control (W893/W873/W783/W763/W583/W563/W553L) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles
Specifications
General
- Brand: Revel
- Model: W-763
- Depth: Mounting depth 3.7″ (9.4 cm)

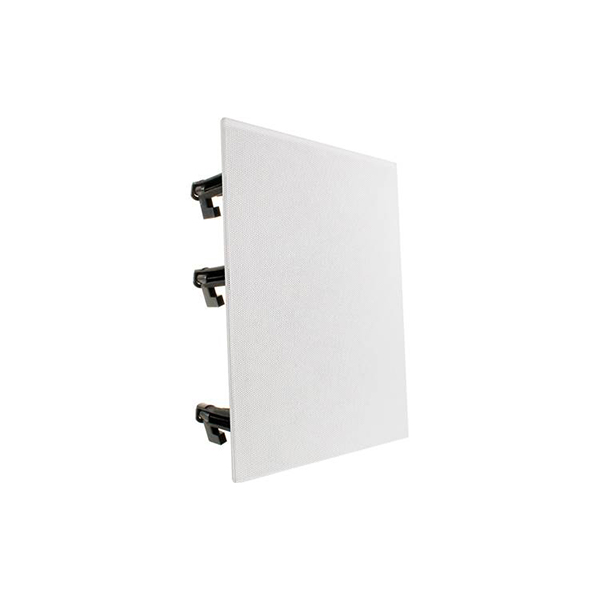

- Features: Cutout dimensions (H x W) 11.9″ x 8.9″ (30.3 cm x 22.7 cm) • Includes zero-bezel magnetic grille • Grille finished dimension (H x W) 12.9″ x 9.9″ (32.8 cm x 25.2 cm
- High Frequency Driver Components: 1″ aluminum dome swiveling high-output tweeter with waveguide
- Low Frequency Extension: High Frequency Extension 3-position HF level contr /Low Frequency Extension LF boundary compensation
- Weight: 7.1 lb (3.2 kg) / Shipping weight 8.6 lb (3.9 kg)
- Low Frequency Driver Components: 8″ Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame High-Output Woofer

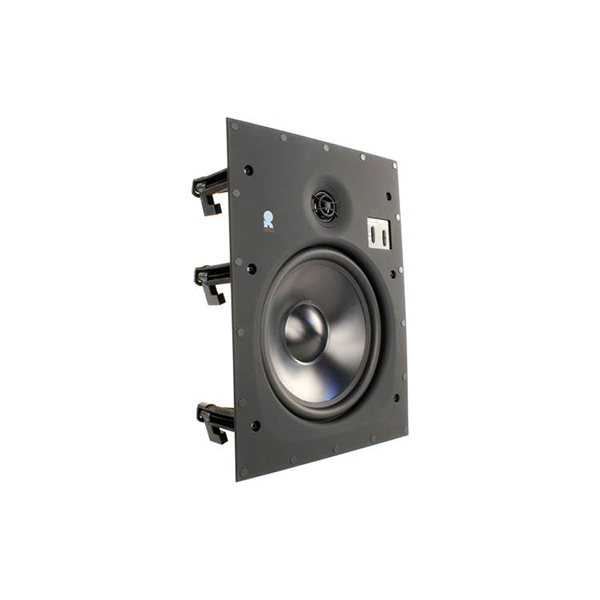

- Mounting: C-2 mounting mechanism • Compatible with wall material thickness range 0.5″ – 1.0″ (1.3 cm – 2.5 cm)
- Recommended Amplifier Power: 10 – 150 Watts RMS
⚡Warranty
- Warranty: 1 Year
