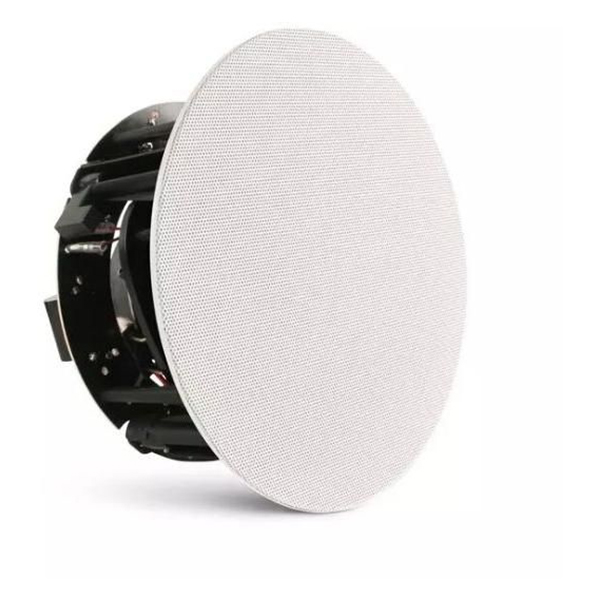

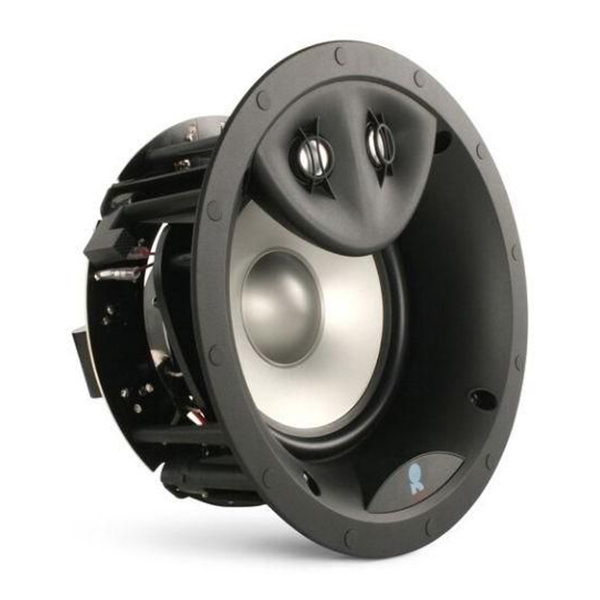

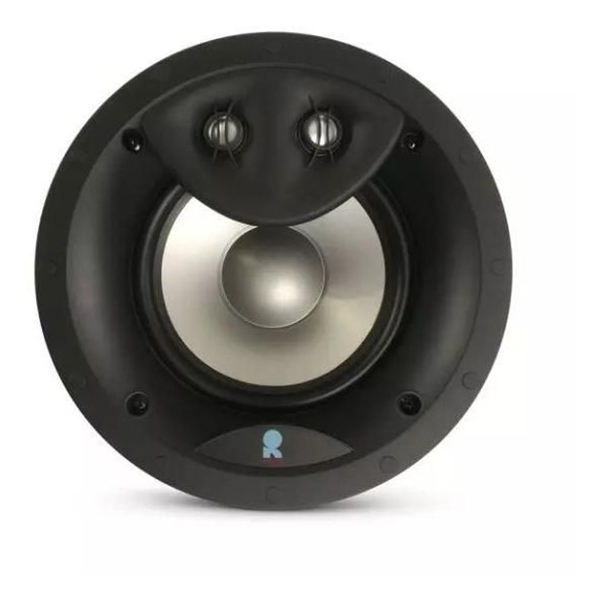

- 6-1/2″ Dual-Tweeter In-ceiling Loudspeaker.
- Features 1-inch (25mm) angle-adjustable, metal-dome tweeter.
- Comes with long-throw woofers with cast frames and rubber surrounds.

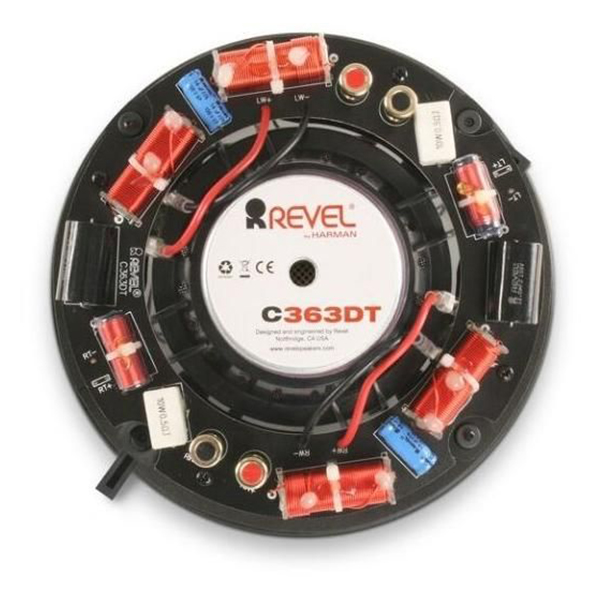

- High-order crossover network with premium-quality components.
- Boundary compensation switch (C783/C763).
- Three-position tweeter level control (C783/C763/C583/C563) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles.
Specifications
⚡General
- Brand: Revel
- Model: C363DT
- Color: white
⚡Features
- Features: Includes both round and square zero-bezel magnetic grilles
Round grille finished dimension (dia.) 9.1″ (23.1 cm) - High Frequency Driver Components: Two 1″ aluminum dome tweeters with waveguides
- Low Frequency Driver Components: 6 ½” Micro-Ceramic Composite (MCC) Cone
Cast-Aluminum Frame Woofer - Recommended Amplifier Power: 10 – 120 Watts RMS (per channel)
- Mounting: C-2 fastening mechanism
Compatible with wall material thickness range 0.5″ – 2.0″ (1.3 cm – 5.0 cm)
⚡Dimension
- Height: Cutout dimensions (dia.) 8″ (20.3 cm)
Square grille finishedHeight 9.1″ (23.1 cm)
- Width: Square grille finished Weight 9.1″ (23.1 cm
- Depth: Mounting depth 4.8” (12.2 cm)
- Weight: 1.9 Kg
⚡Warranty
- Warranty Type: Manufacturers
- Warranty Period: 1 Year
