- Dual-band Operation : Works on both VHF (136–174 MHz) and UHF (400–520 MHz) frequencies for versatile communication.
- Dual PTT (Push-To-Talk) System : Unique dual-button design allows transmission on two different frequencies without switching channels.
- High/Low Power Modes : Selectable output power (typically 5W/1W) helps conserve battery or extend range.
- Dual sStandby / Dual Watch : Can monitor two frequencies simultaneously, improving communication efficiency.
- 128 Programmable Memory Channels : Store multiple frequencies for quick access and organized communication.
- Large LCD Display : Bright, backlit screen shows frequency, channel, battery status, and settings clearly.
- Heavy-Duty Design : Rugged body with larger buttons and solid casing suitable for outdoor and field use.
- VOX (Voice-operated transmission) : Hands-free operation activates transmission automatically when you speak.
- CTCSS/DCS Privacy Codes : Includes 50 CTCSS and 100+ DCS tones to reduce unwanted signals and interference.
- Wide/Narrow Band Selectable : Supports both bandwidth modes for compatibility with different communication systems.
- Long Battery Life : Typically powered by a 1800mAh Li-ion battery, providing extended usage time.
Specifications
General
- Brand: Baofeng

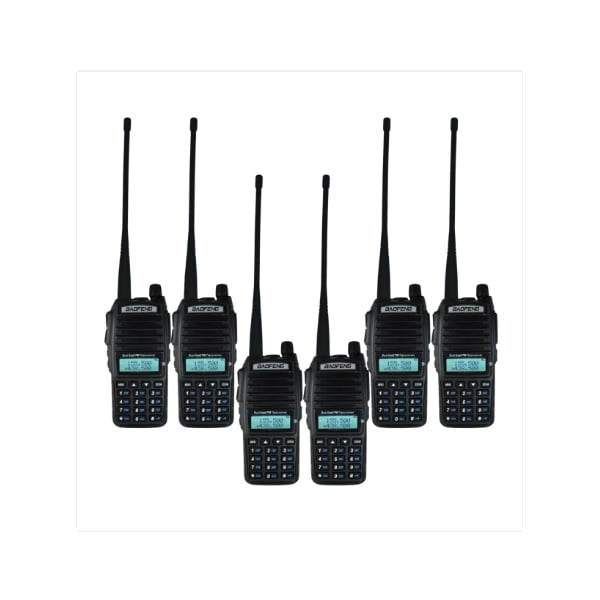

- Model Name: UV-82
- Color: Black
- Frequency Range (VHF): 136–174 MHz
- Output Power: 5W (High) / 1W (Low) selectable
- Frequency Stability: ±1.5 ppm to 2.5 ppm
- Operating Voltage: 3.7V Li-ion battery
- Battery Capacity: 1800 mAh rechargeable battery
- Antenna Impedance: 50 ohms
- Operating Temperature: -20°C to +60°C
- Receiver Sensitivity: ~0.15–0.2 μV
- Audio Output Power: ≥600 mW to 1W
- Signal-to-Noise Ratio: 35–40 dB
- Modulation Type: FM (16KΦF3E / 8KΦF3E)
- Max Frequency Deviation: ±5 kHz / ±2.5 kHz
- Spurious Emission: ≤ -36 dBm
- Current Consumption: ~380 mA (receive), ≤1.4A (transmit)
- Operation Mode: Simplex / Semi-duplex (repeater capable)
